Energy Management System Co., Ltd.Product Services
The product information serves as references and can’t be used for bidding
3G/4G Wireless Datalogger- MINI-G series
Model
MINI-G
Compact data logger for water network to monitor flow accumulation
" Compact data logger for 2G/3G/4G/GPRS transmission"
Reliability
-Data logging of net/forward/reverse flow, flow rate, pressure, and voltage, etc.
-Build-in 5 years battery lifespan
-Robust IP68 rated housing
-Build-in 5 years battery lifespan
-Robust IP68 rated housing
Convenience
-User-defined logging and transmission intervals
-Set up parameters and download historical data by IrDA reader
-Remote parameters configuration
-Set up parameters and download historical data by IrDA reader
-Remote parameters configuration
Applications
-District/zone flow monitoring
-Commercial and industrial monitoring
-3G/4G communications
-Commercial and industrial monitoring
-3G/4G communications
| PHYSICAL DESIGN | ||||||
|---|---|---|---|---|---|---|
| Dimensions (H*W*L) | 131.7*138.2*53.5 (mm) | |||||
| Weight | ||||||
| 530 g | ||||||
| Operating temperature | -25℃ ~70℃ | |||||
| Enclosure class | IP68 | |||||
| Power supply | 5 years build-in battery lifespan (daily transmission) | |||||
| CONNECTIONS | ||||||
| Digital signal | EMS digital water meter | |||||
| COMMUNICATIONS | ||||||
| 4G | UMTS: 700/800/900/1800/2100 MHz (Band28, Band20, Band3, Band8, Band1) | |||||
| SIM | Standard SIM (Mini SIM) | |||||
| External Antenna | 1 meter | |||||
| CONFIGURATION | ||||||
| Infrared | IrDA to USB cable | |||||
| Remote | Wireless configuration by 3G/4G | |||||
| LOGGING CAPACITY & TRANSMISSION FREQUENCY | ||||||
| Logging | Flow up to 4000 | |||||
| Transmission | Logging frequency from 1 Min. to 1440 Mins. Transmission frequency from 1 Min. to 1440 Mins. | |||||
Suitable Site

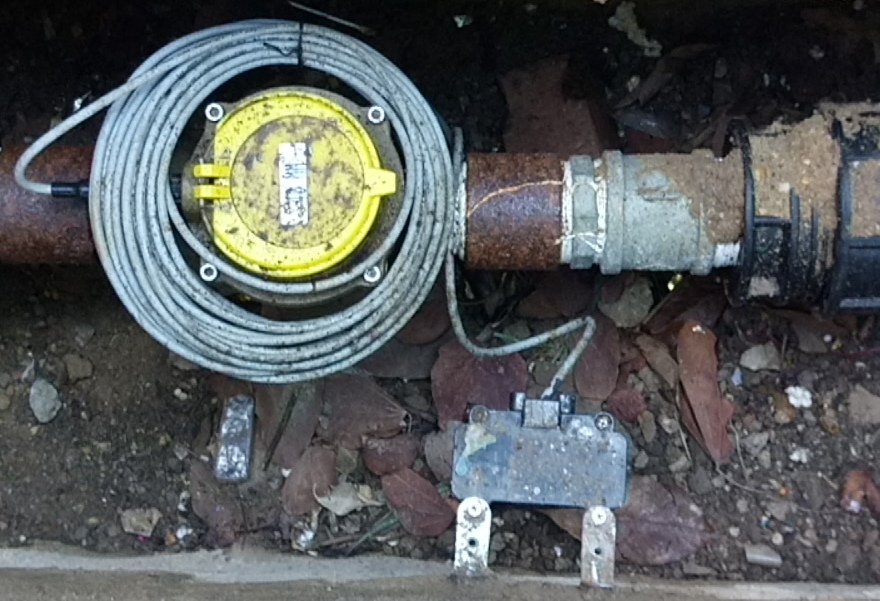

MINI-G in Vietnam Project
Applying MINI-G to conduct data transmission with 2G/3G/GPRS.
With robust IP68 rated housing, MINI-G can be installed in outdoor environment.
With robust IP68 rated housing, MINI-G can be installed in outdoor environment.
Product Suggestions
Download Files
The product information serves as references and can’t be used for bidding
